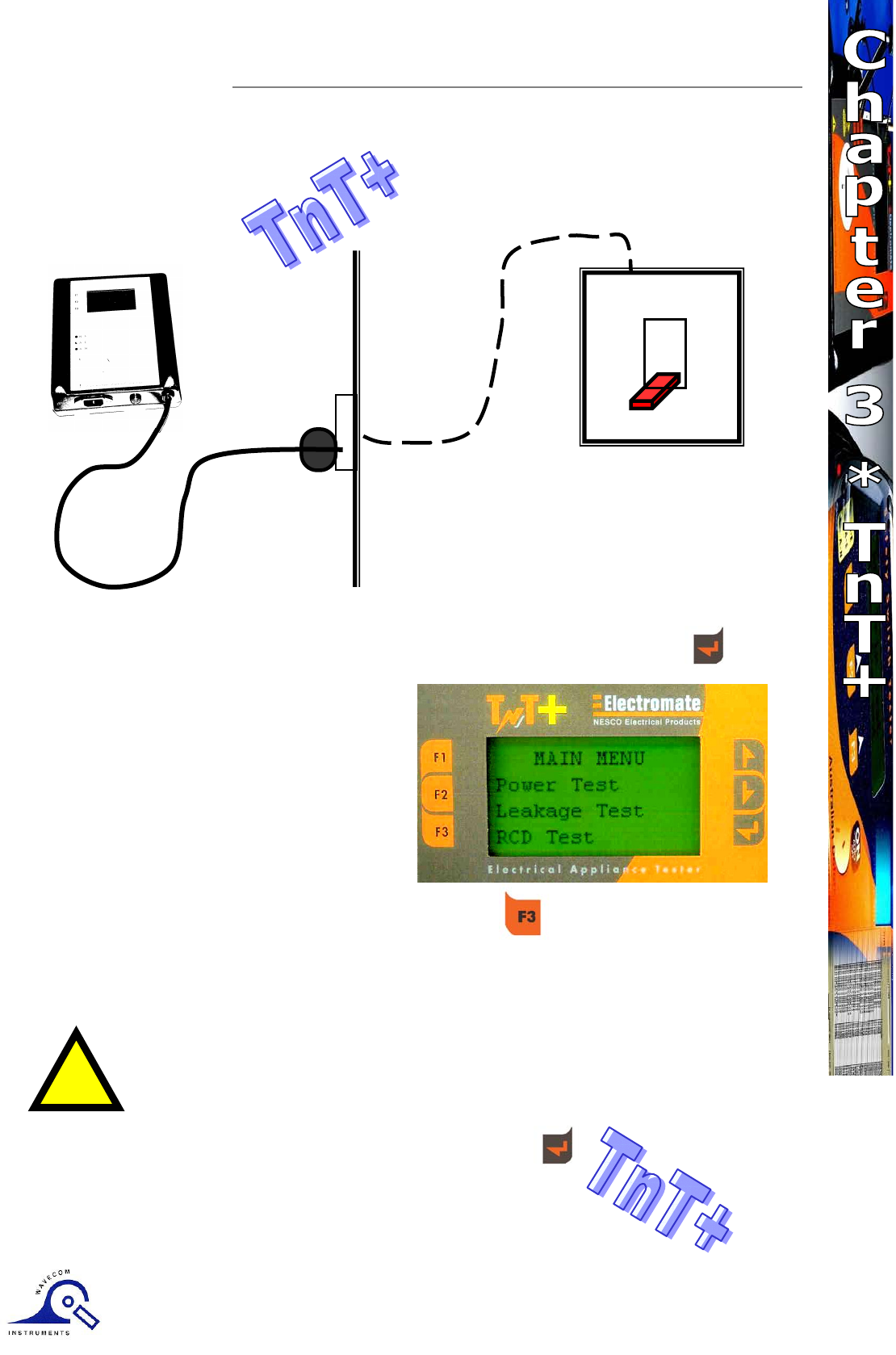

Chapter 3 – TnT+ Portable Appliance

Test Instructions

[continued]

RCD TEST

Menu 2

To select the second menu, press and release the RETURN/ENTER

Button.

This Menu will display 3 functions:

Power Test

Leakage Test

RCD Test

To enter RCD menu press and release F3 button

RCD sub-menu: This will display a further 2 options

F1 – RCD Trip Time

F2 – RCD Trip Current

CAUTION Pressing F2 at this point will cause tripping if RCD fitted.



To exit this menu, press and release the Return button

Wall

GPO

TnT+ Plug

TnT+

SWITCH BOARD

FIXED RCD

OFF

DIAGRAM 2
