Chapter 1 – TnT Portable Appliance

Part No: WCM-TNT

Test Instructions

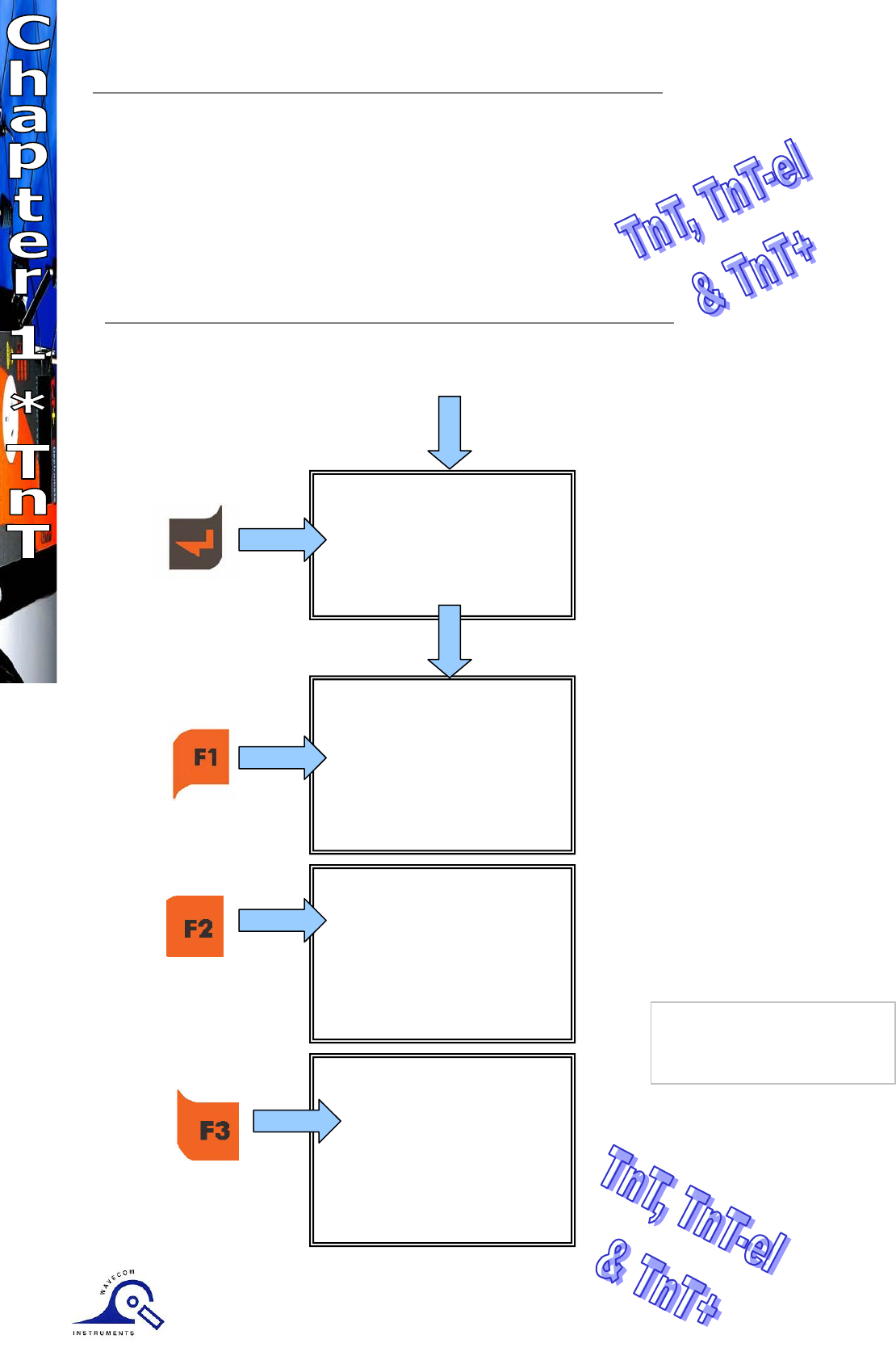

TnT Test Function Flow Chart









 



 



 



 









Main Menu 1

F1 Earth Test

F2 D/Ins Test

F 3Ext Lead Test

F1 Earth Test

 Supply Mains Test

 NCNT Test

 Earth Bond Test

 Insulation Test

 Results Summary

F2 D/Ins Test

 Supply Mains Test

 NCNT Test

 Double Ins Test

 Results Summary

F3 Ext Lead Test

 Supply Mains Test

 Earth Bond Test

 Insulation Test

 Continuity & Polarity

Test

 Results Summary

Please note:

Menu 1 is

common to all models

[TnT, TnT-el & TnT+]
