A SIM card is needed to operate on a GSM network.

To install the card:

- Press the yellow button to eject the holder.

- Insert the SIM card.

- Check that it fits into place correctly.

DESCRIPTION OF THE INTERFACES

Wavecom WMOD2B Modem 8

SMA connector

(antenna connector)

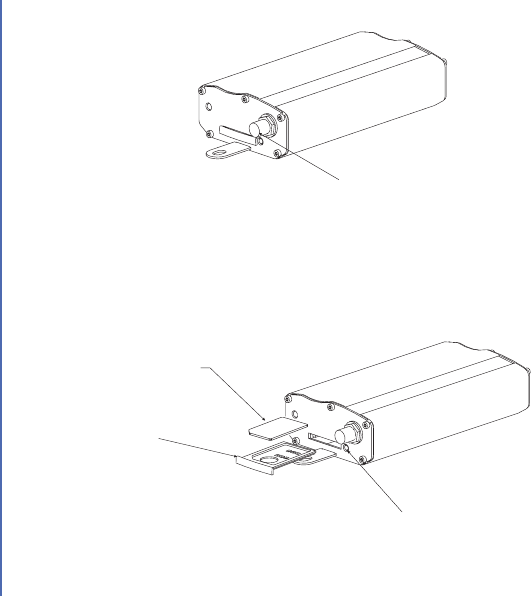

Figure 5

SIM card holder

Figure 4

SMA connector

Extractible

SIM card holder

SIM card

Yellow button to

eject the holder

(with a sharp element)
